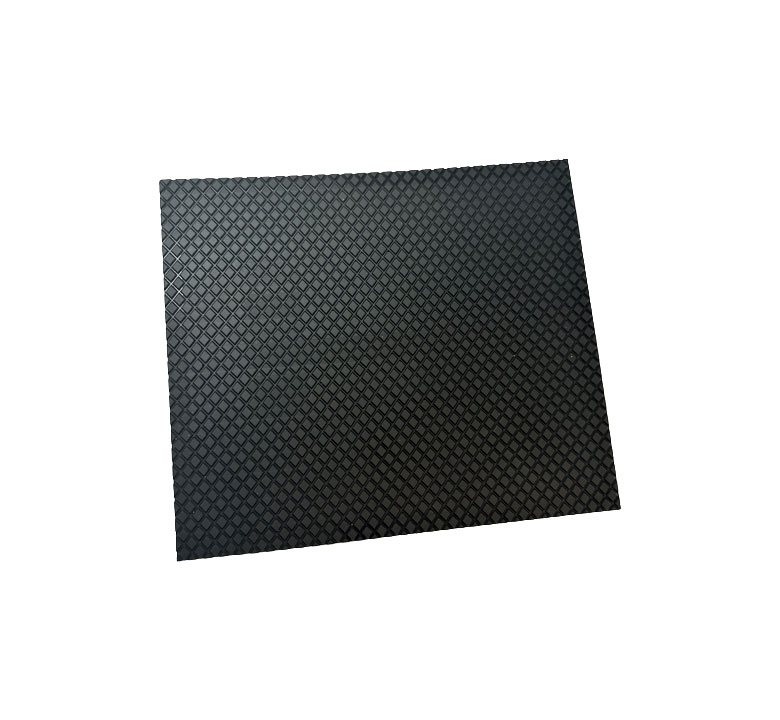

Diamond Pattern Sheet Stock 13” X 15”

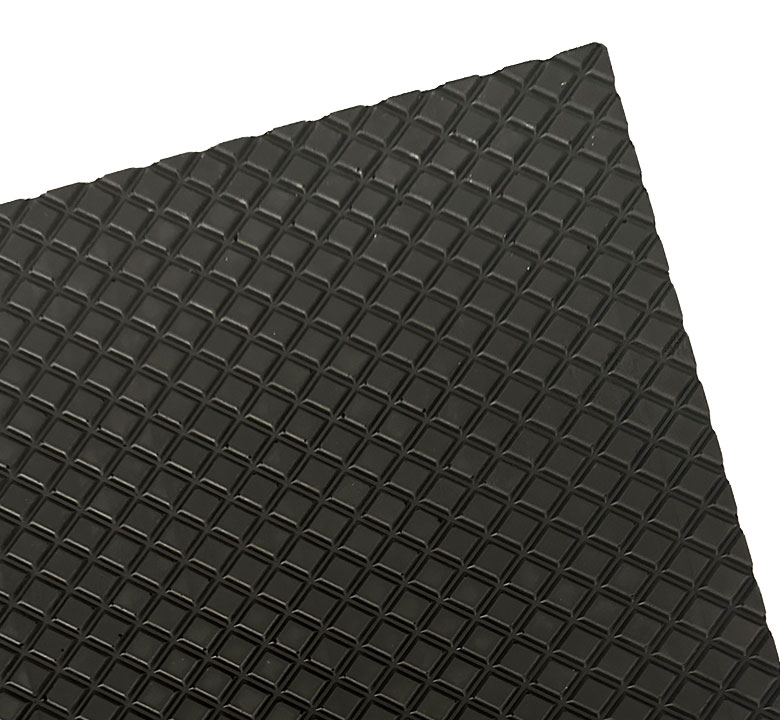

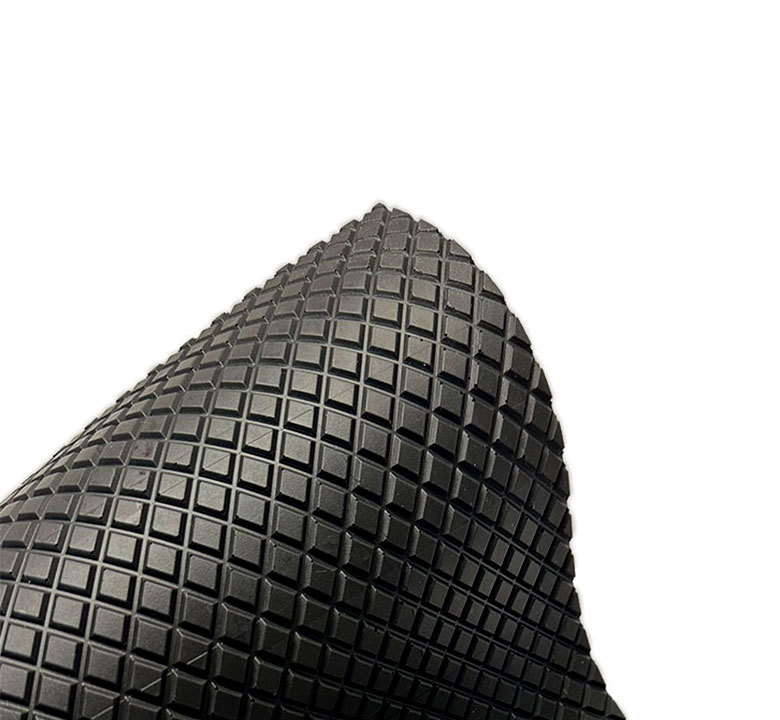

Diamond Pattern Sheets measure 13” X 15” and are available in select thicknesses and durometers. Channels molded in the sheet create an overall diamond pattern. These channels allow the Sorbothane material room to isolate energy by naturally deforming under load. Diamond Pattern Sheets are easier to apply to curved and irregular surfaces. Sheet Stock can be knife-cut, scissor-cut, die cut or water jet cut. Contact Sorbothane Engineering for product files.
Product PDF NEW: CAD Catalog-
Typical applications
- Custom Cut Isolating Components
- Custom Cut Prototypes
- Edge-to-Edge Vibration Isolation and Shock Attenuation
- Irregular Surface Application
- Medium to Heavy Equipment
| Part Number | Dimensions | Durometer +/-5 | Thickness Tolerance |
|---|---|---|---|
| 0213012-40-10 | 0.125 x 13 x 15 | 40 | ±0.020 |
| 0213012-50-10 | 0.125 x 13 x 15 | 50 | ±0.020 |
| 0213012-60-10 | 0.125 x 13 x 15 | 60 | ±0.020 |
| 0213012-70-10 | 0.125 x 13 x 15 | 70 | ±0.020 |
| 0213012-80-10 | 0.125 x 13 x 15 | 80 | ±0.020 |
| 0213018-40-10 | 0.188 x 13 x 15 | 40 | ±0.025 |
| 0213018-50-10 | 0.188 x 13 x 15 | 50 | ±0.025 |
| 0213018-60-10 | 0.188 x 13 x 15 | 60 | ±0.025 |
| 0213018-70-10 | 0.188 x 13 x 15 | 70 | ±0.025 |
| 0213018-80-10 | 0.188 x 13 x 15 | 80 | ±0.025 |
| 0213025-40-10 | 0.250 x 13 x 15 | 40 | ±0.030 |
| 0213025-40-10 | 0.250 x 13 x 15 | 50 | ±0.030 |
| 0213025-40-10 | 0.250 x 13 x 15 | 60 | ±0.030 |
| 0213025-40-10 | 0.250 x 13 x 15 | 70 | ±0.030 |
| 0213025-40-10 | 0.250 x 13 x 15 | 80 | ±0.030 |
