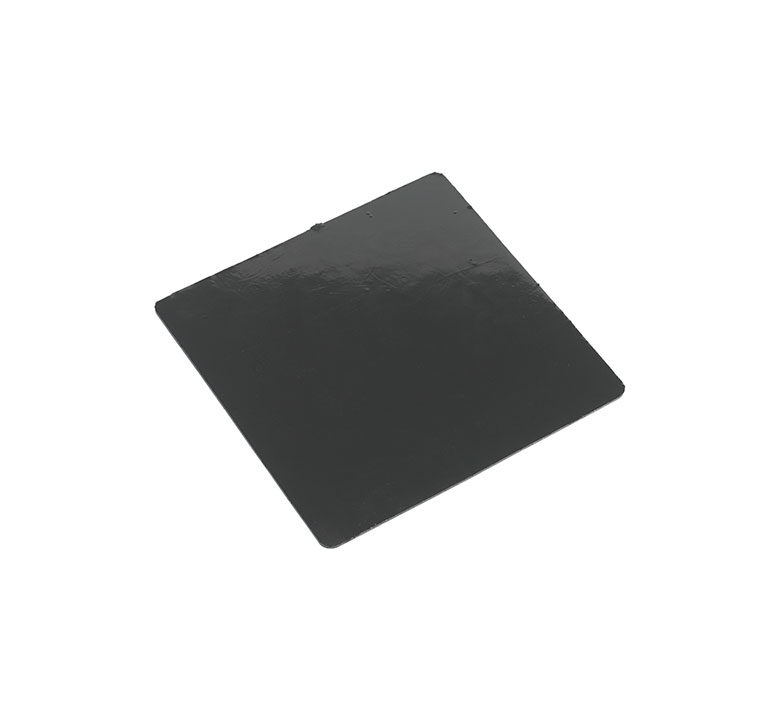

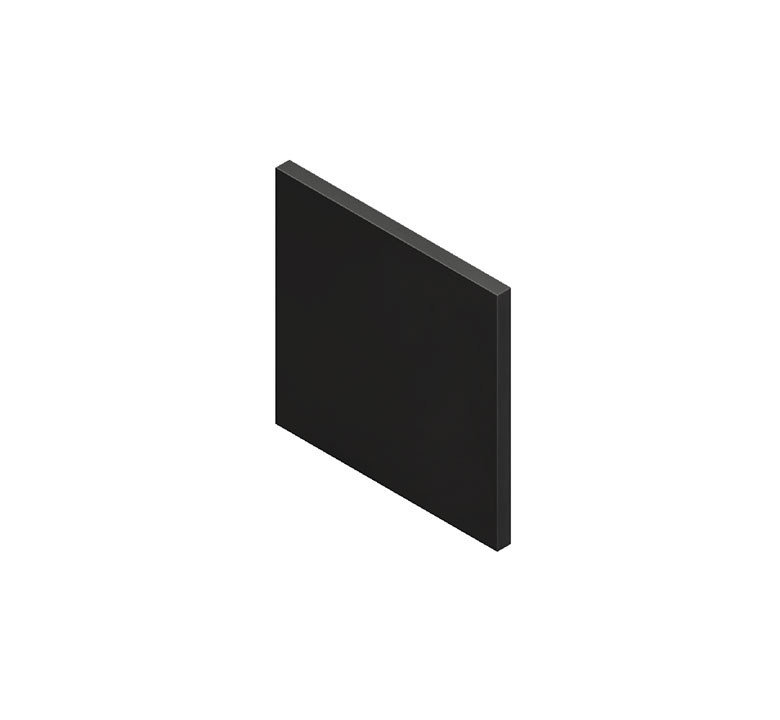

Sheet Stock 6" X 6"
Sorbothane® Sheets 6" X 6" are available in select thicknesses and durometers. Sheet Stock can be knife-cut, scissor-cut, die cut or water jet cut.
Product PDF NEW: CAD Catalog-
Typical applications
- Custom Cut Isolating Components
- Custom Cut Prototypes
- Die Cut Parts
- Edge-To-Edge Vibration and Shock Padding
- Gaskets
| Part Number | Dimensions | Durometer +/-5 | Thickness Tolerance |
|---|---|---|---|
| 0206080-40-10 | 0.080 x 6 x 6 | 40 | ±0.015 |
| 0206080-50-10 | 0.080 x 6 x 6 | 50 | ±0.015 |
| 0206080-60-10 | 0.080 x 6 x 6 | 60 | ±0.015 |
| 0206080-70-10 | 0.080 x 6 x 6 | 70 | ±0.015 |
| 0266025-30-10 | 0.250 x 6 x 6 | 30 | ±0.025 |
| 0266025-40-10 | 0.250 x 6 x 6 | 40 | ±0.025 |
| 0266025-50-10 | 0.250 x 6 x 6 | 50 | ±0.025 |
| 0266025-60-10 | 0.250 x 6 x 6 | 60 | ±0.025 |
| 0266025-70-10 | 0.250 x 6 x 6 | 70 | ±0.025 |
| 0266050-30-10 | 0.500 x 6 x 6 | 30 | ±0.035 |
| 0266050-40-10 | 0.500 x 6 x 6 | 40 | ±0.035 |
| 0266050-50-10 | 0.500 x 6 x 6 | 50 | ±0.035 |
| 0266050-60-10 | 0.500 x 6 x 6 | 60 | ±0.035 |
| 0266050-70-10 | 0.500 x 6 x 6 | 70 | ±0.035 |
| 0266075-30-10 | 0.750 x 6 x 6 | 30 | ±0.040 |
| 0266075-40-10 | 0.750 x 6 x 6 | 40 | ±0.040 |
| 0266075-50-10 | 0.750 x 6 x 6 | 50 | ±0.040 |
| 0266075-60-10 | 0.750 x 6 x 6 | 60 | ±0.040 |
| 0266075-70-10 | 0.750 x 6 x 6 | 70 | ±0.040 |
| 0266100-30-10 | 1.000 x 6 x 6 | 30 | ±0.060 |
| 0266100-40-10 | 1.000 x 6 x 6 | 40 | ±0.060 |
| 0266100-50-10 | 1.000 x 6 x 6 | 50 | ±0.060 |
| 0266100-60-10 | 1.000 x 6 x 6 | 60 | ±0.060 |
| 0266100-70-10 | 1.000 x 6 x 6 | 70 | ±0.060 |
